Series 3 plans

$1,895.00

Product Description

Series 3:   18.2 x 8 m 8 berths

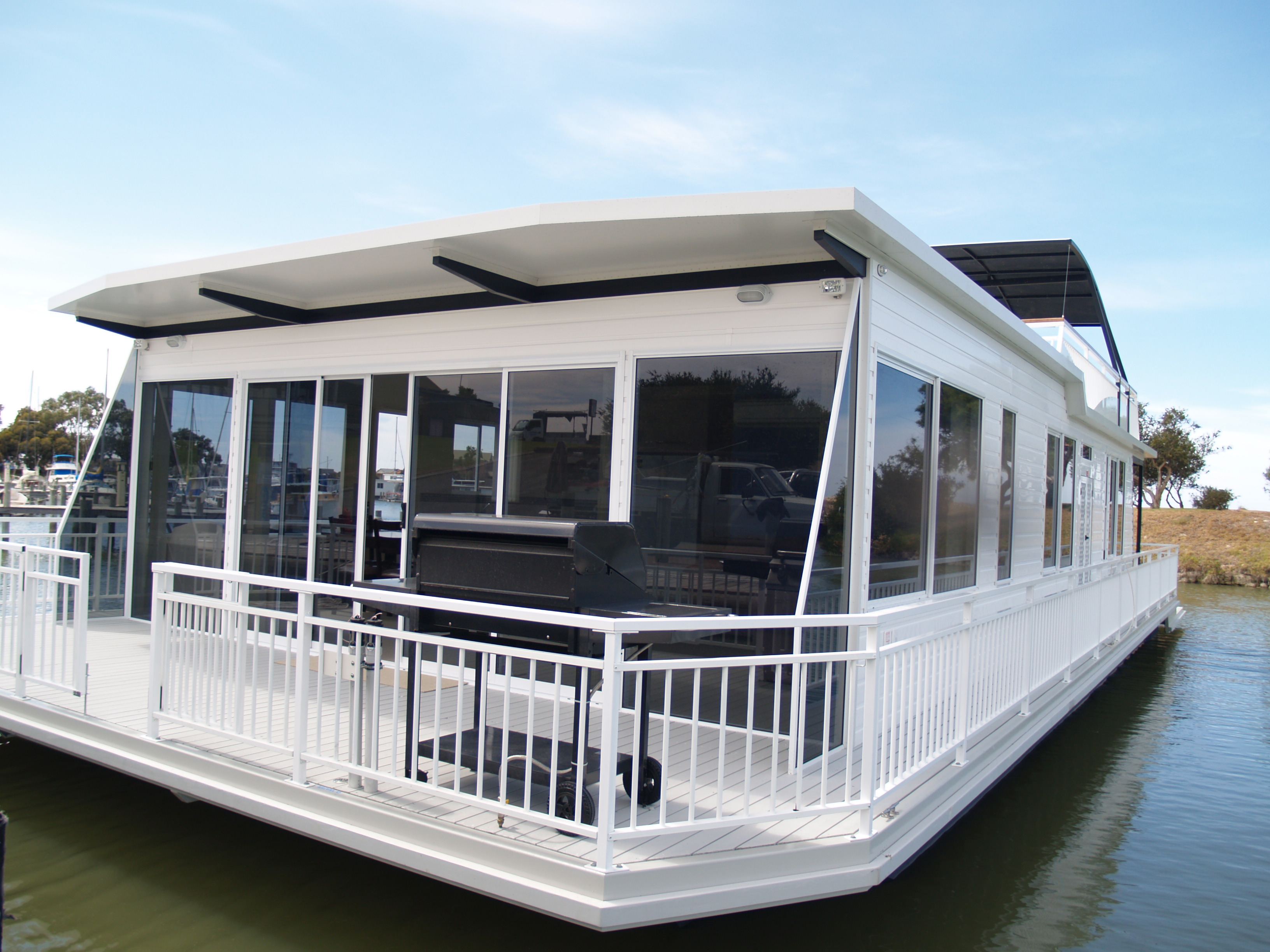

The Series three is one of our best-selling plans. A large double sliding door leads onto the front deck providing a visual connection to the environment. This basic design has been built for many years; it is popular for its generous living spaces and economical construction. The use of modern materials, incorporated with some traditional features gives this earlier design a smart contrast.

This vessel is perfect for the mid-range hire fleet or ideal for private or lives aboard.

Features:

Three double bedrooms with dual access bathroom consisting of two toilets, front and rear lounge areas and sun deck.

*Estimated Completed value $330,000 to 390,000 Depending on fit out level

Plan info so what do I get

After purchase you receive a link to a downloadable zipped file containing all relevant files. For copyright reasons we are unable to publish the full detailed plans in a large format online. However the thumbnails we have published give you a visual on the detail included in all the plans. All plans are in PDF format. After purchase you receive a link to a downloadable zipped file containing all relevant files.

“If I purchase a plan, what do I get?” A downloadable .zip file comprising:

Model Designs:

Includes 5 PDF Drawings of the exterior of your houseboat model from all angles.

3D Perspective Plans:

Includes 8 PDF Drawings of the interior of the houseboat from various perspectives, detailing each room, living areas, bathroom and all features.

Working Drawings:

These are 6 technical plans including:

  1. Houseboat Floor Plan
  2. Front and Rear elevation
  3. Port and Starboard elevations
  1. Chassis and Pontoon Plan
  2. Roof Plan
  3. Fuel Tank Plan

These plans have been created with the finest quality in mind. Make your dream a reality! Pick a plan and start today. Now even easier with our new consultancy service

Terms and Conditions apply

For further information regarding consultancy and project management please contact us Contact Us
