Series 4 plans

$2,250.00

Product Description

Series 4: 14.5m x 5.8 m 4 berths

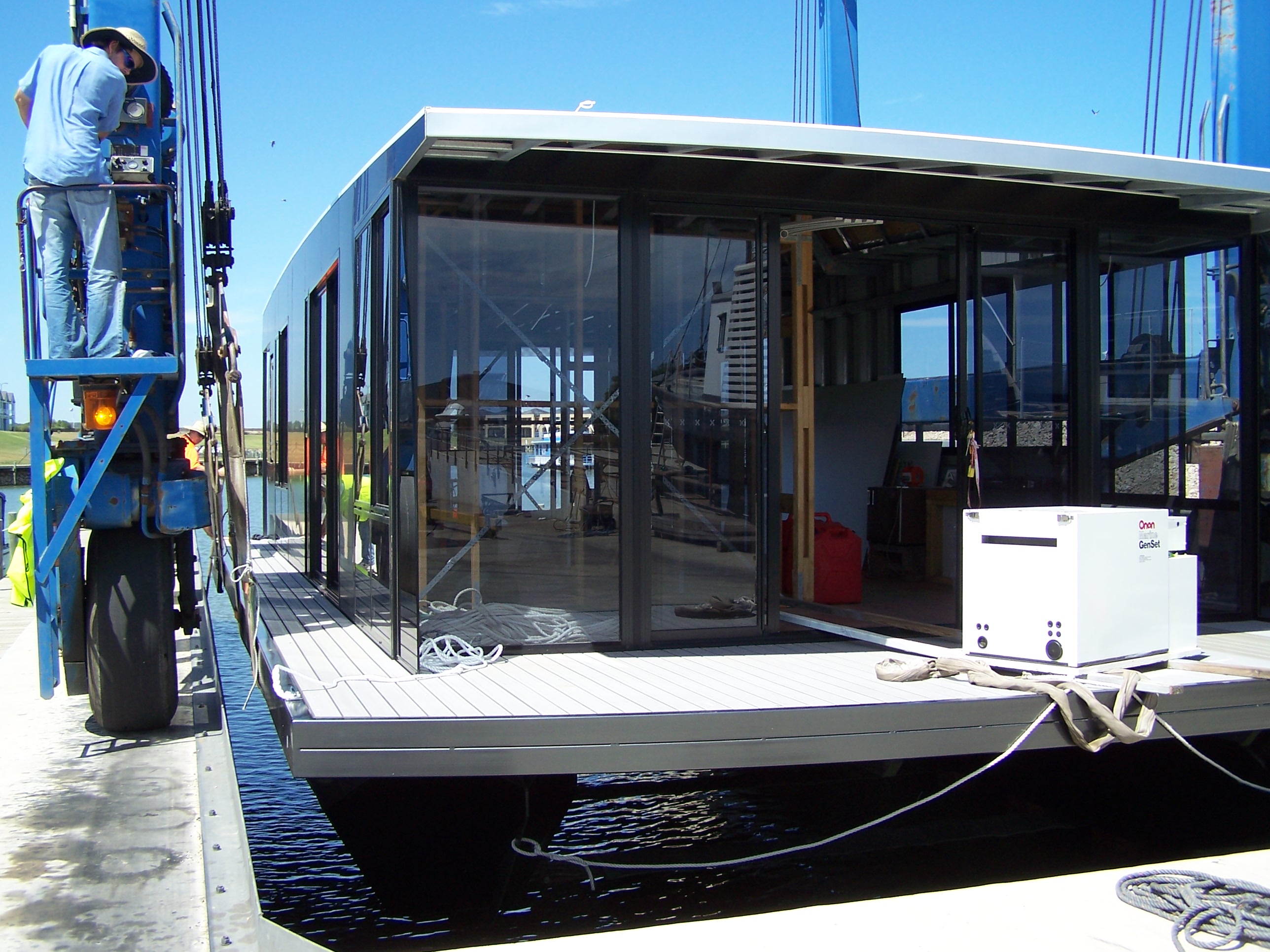

The Series four has been designed with a luxury feel in mind, perfect for a weekend retreat for a couple or a small family. The series four is manageable for a couple to handle with ease, without compromising on its generous living spaces. The series four boasts a striking contemporary design incorporating modern composite materials and the extensive use of glass and high arched ceilings. It features a large rear deck, allowing for extensive outdoor living.
This vessel is suitable for the up market hire fleet or ideal as a weekender.

Features:

One master bedroom with dual access bathroom /ensuite with spa, sofa bed at rear, two separate lounge areas, double sliding doors at rear that lead onto a large entertaining deck. Also includes a sundeck.

*Estimated Completed value $250,000 to 290,000 Depending on fit out level

Plan info so what do I get

After purchase you receive a link to a downloadable zipped file containing all relevant files. For copyright reasons we are unable to publish the full detailed plans in a large format online. However the thumbnails we have published give you a visual on the detail included in all the plans. All plans are in PDF format. After purchase you receive a link to a downloadable zipped file containing all relevant files.

“If I purchase a plan, what do I get?” A downloadable .zip file comprising:

Model Designs:

Includes 5 PDF Drawings of the exterior of your houseboat model from all angles.

3D Perspective Plans:

Includes 8 PDF Drawings of the interior of the houseboat from various perspectives, detailing each room, living areas, bathroom and all features.

Working Drawings:

These are 6 technical plans including:

  1. Houseboat Floor Plan
  2. Front and Rear elevation
  3. Port and Starboard elevations
  1. Chassis and Pontoon Plan
  2. Roof Plan
  3. Fuel Tank Plan

These plans have been created with the finest quality in mind. Make your dream a reality! Pick a plan and start today. Now even easier with our new consultancy service

Terms and Conditions apply

For further information regarding consultancy and project management please contact us Contact Us
