Series 6 plans

$1,895.00

Product Description

Series 6: 17.8m x 7.5m 6 berths

The series six provides a well-appointed living environment, with the kitchen, Dining and Lounge area positioned to one side of the vessel. The series six consists of a contemporary open plan layout, idea for the family, or a couple who like to entertain. The maximized spacious plan makes for a great live abroad option or commercial hire vessel.

Features:

Two double bedrooms, one with ensuite and the other with access to the main bathroom, two separate dining areas, bar, lounge and sun deck

*Estimated Completed value $380,000 to 430,000 Depending on fit out level

Plan info so what do I get

After purchase you receive a link to a downloadable zipped file containing all relevant files. For copyright reasons we are unable to publish the full detailed plans in a large format online. However the thumbnails we have published give you a visual on the detail included in all the plans. All plans are in PDF format. After purchase you receive a link to a downloadable zipped file containing all relevant files.

“If I purchase a plan, what do I get?” A downloadable .zip file comprising:

Model Designs:

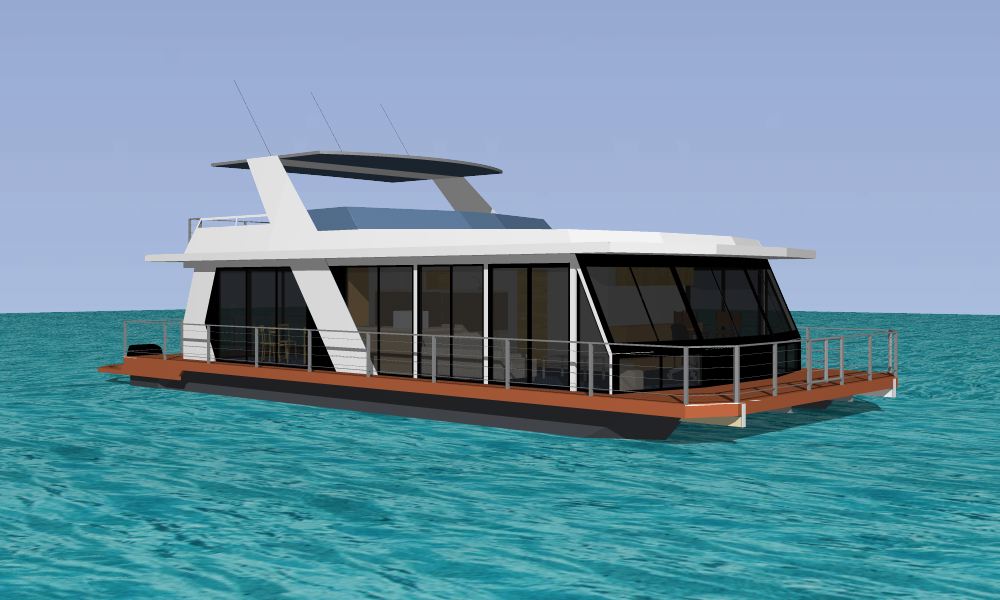

Includes 5 PDF Drawings of the exterior of your houseboat model from all angles.

3D Perspective Plans:

Includes 8 PDF Drawings of the interior of the houseboat from various perspectives, detailing each room, living areas, bathroom and all features.

Working Drawings:

These are 6 technical plans including:

  1. Houseboat Floor Plan
  2. Front and Rear elevation
  3. Port and Starboard elevations
  1. Chassis and Pontoon Plan
  2. Roof Plan
  3. Fuel Tank Plan

These plans have been created with the finest quality in mind. Make your dream a reality! Pick a plan and start today. Now even easier with our new consultancy service

Terms and Conditions apply

For further information regarding consultancy and project management please contact us Contact Us
