Series 7 plans

$1,895.00

Product Description

Series 7: 21.8m x 8 m 14 berths

The series 7 is a contemporary vessel with generous living spaces and room to really move. The kitchen has everything you would expect for extended trips and our most suitable design for a live aboard. The series 7 is ideal for larger families, who enjoy entertaining, and is a popular option for those wishing to produce a commercial hire vessel.

Features:

Four double bedrooms, one four berth bunk room, lounge room, (sofa bed inclusive), two bathrooms, spacious kitchen, extensive dining and lounge area and a large sun deck for the ultimate in relaxation and entertaining.

*Estimated Completed value $550,000 to 630,000 Depending on fit out level

Plan info so what do I get

After purchase you receive a link to a downloadable zipped file containing all relevant files. For copyright reasons we are unable to publish the full detailed plans in a large format online. However the thumbnails we have published give you a visual on the detail included in all the plans. All plans are in PDF format. After purchase you receive a link to a downloadable zipped file containing all relevant files.

“If I purchase a plan, what do I get?” A downloadable .zip file comprising:

Model Designs:

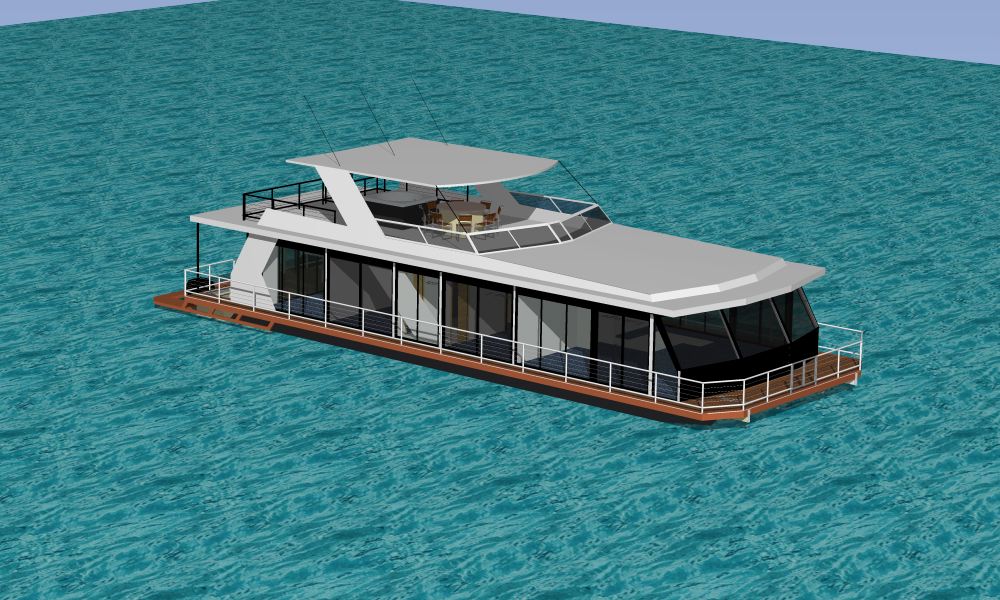

Includes 5 PDF Drawings of the exterior of your houseboat model from all angles.

3D Perspective Plans:

Includes 8 PDF Drawings of the interior of the houseboat from various perspectives, detailing each room, living areas, bathroom and all features.

Working Drawings:

These are 6 technical plans including:

  1. Houseboat Floor Plan
  2. Front and Rear elevation
  3. Port and Starboard elevations
  1. Chassis and Pontoon Plan
  2. Roof Plan
  3. Fuel Tank Plan

These plans have been created with the finest quality in mind. Make your dream a reality! Pick a plan and start today. Now even easier with our new consultancy service
