SERIES 2 PLANS

$2,250.00

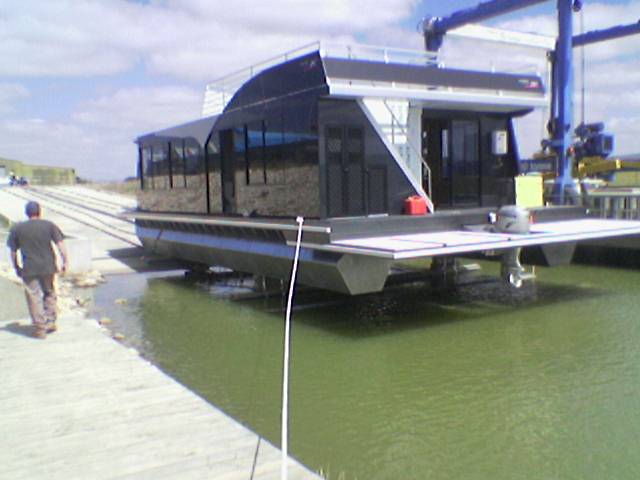

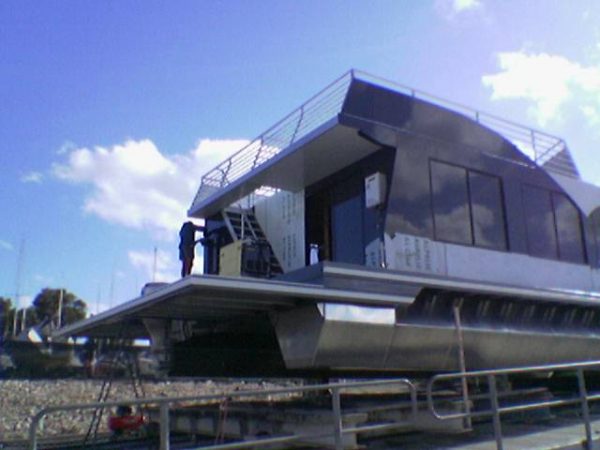

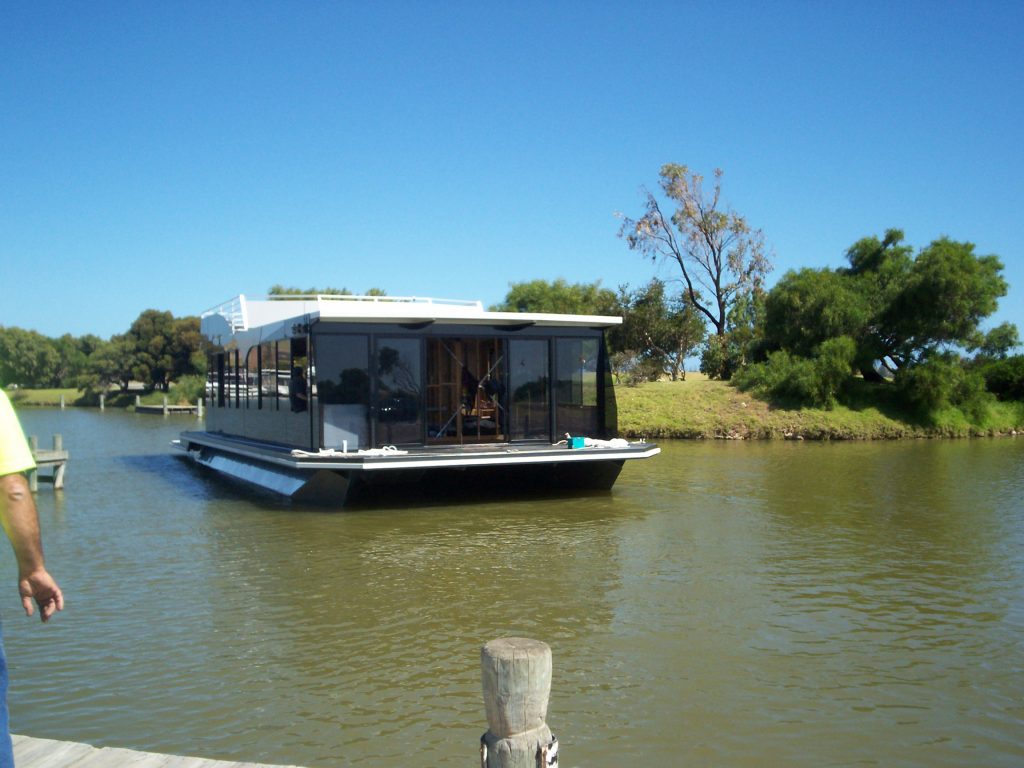

Series 2: 16.2m x 7.0m 6 berths

The series two takes much of its design, layout and features from the series one Vessel. The most significant differences include a flat roof and smaller windows; it is also designed to be built with timber frame construction, consequently allowing for a more economical construction cost. The series one upholds excellent functionality throughout and is lovingly crafted. This boat maintains the contemporary feel of the Series one without the price tag. The Series two incorporates provision for large sliding doors, which open out onto the front desk, providing an excellent indoor/outdoor environment.
This vessel is suitable for the up market hire fleet or for private use or fantastic alternative living solution.

Features:

Two double bedrooms with dual access shared ensuite bathroom, two separate lounge areas and sundesk.

Compare
Categories: ,

Description

Plan info so what do I get

After purchase you receive a link to a downloadable zipped file containing all relevant files. For copyright reasons we are unable to publish the full detailed plans in a large format online. However the thumbnails we have published give you a visual on the detail included in all the plans. All plans are in PDF format. After purchase you receive a link to a downloadable zipped file containing all relevant files.

“If I purchase a plan, what do I get?” A downloadable .zip file comprising:

Model Designs:

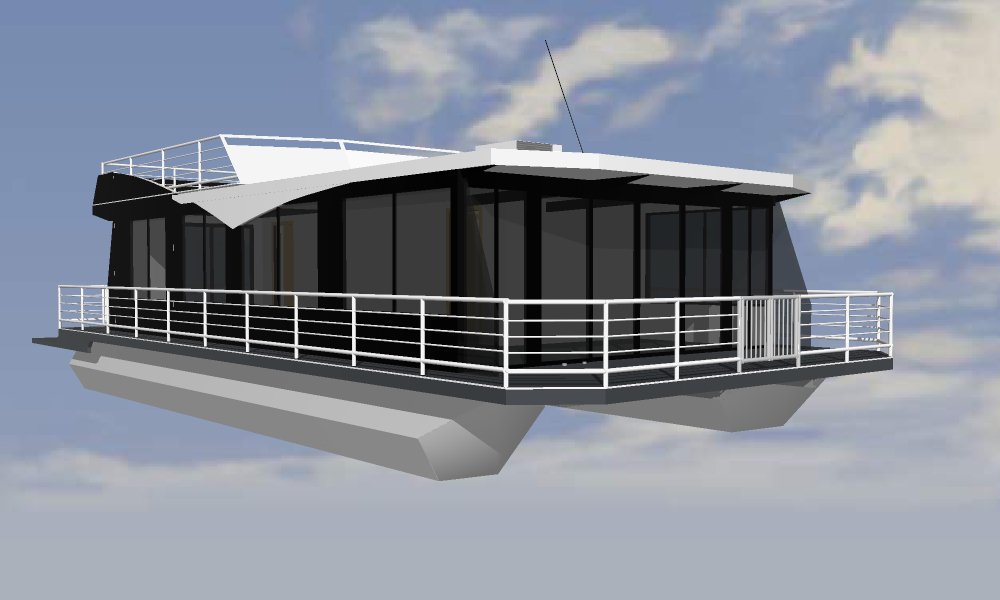

Includes 5 PDF Drawings of the exterior of your houseboat model from all angles.

3D Perspective Plans:

Includes 8 PDF Drawings of the interior of the houseboat from various perspectives, detailing each room, living areas, bathroom and all features.

Working Drawings:

These are 6 technical plans including:

  1. Houseboat Floor Plan
  1. Roof Plan
  1. Front and Rear elevation
  1. Fuel Tank Plan
  1. Port and Starboard elevations
  1. Chassis and Pontoon Plan
