SERIES 4 PLANS

$2,250.00

Series 4: 14.5m x 5.8 m 4 berths

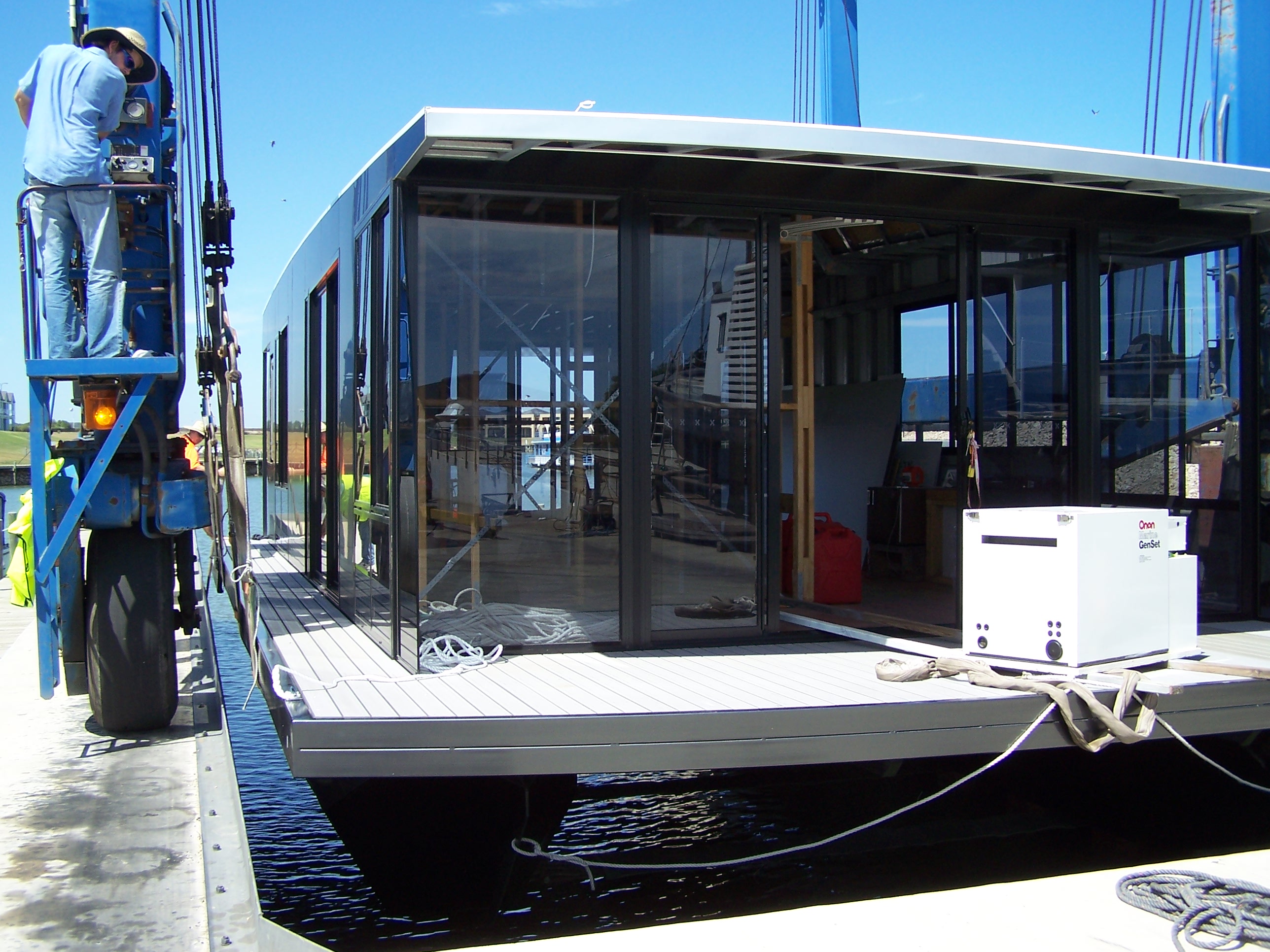

The Series four has been designed with a luxury feel in mind, perfect for a weekend retreat for a couple or a small family. The series four is manageable for a couple to handle with ease, without compromising on its generous living spaces. The series four boasts a striking contemporary design incorporating modern composite materials and the extensive use of glass and high arched ceilings. It features a large rear deck, allowing for extensive outdoor living.
This vessel is suitable for the up market hire fleet or ideal as a weekender.

Features:

One master bedroom with dual access bathroom /ensuite with spa, sofa bed at rear, two separate lounge areas, double sliding doors at rear that lead onto a large entertaining deck. Also includes a sundeck.

Compare
Categories: ,

Description

Plan info so what do I get

After purchase you receive a link to a downloadable zipped file containing all relevant files. For copyright reasons we are unable to publish the full detailed plans in a large format online. However the thumbnails we have published give you a visual on the detail included in all the plans. All plans are in PDF format. After purchase you receive a link to a downloadable zipped file containing all relevant files.

“If I purchase a plan, what do I get?” A downloadable .zip file comprising:

Model Designs:

Includes 5 PDF Drawings of the exterior of your houseboat model from all angles.

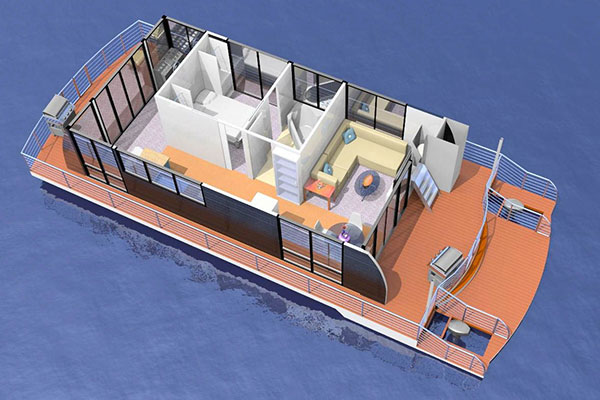

3D Perspective Plans:

Includes 8 PDF Drawings of the interior of the houseboat from various perspectives, detailing each room, living areas, bathroom and all features.

Working Drawings:

These are 6 technical plans including:

  1. Houseboat Floor Plan
  1. Roof Plan
  1. Front and Rear elevation
  1. Fuel Tank Plan
  1. Port and Starboard elevations
  1. Chassis and Pontoon Plan
